Port / Shipyard, Mining and Stockyard Equipment

MBE stepped into the business segment of Surface Mining Equipment and Stockyard Equipment from the mid 90’s in association with Poltegor Engineering Ltd Poland and into the segment of Port and Yard Cranes as a part of the ongoing diversification process. Subsequently, in January 2002, MBE signed a comprehensive License agreement with Kone cranes VLC Corporation, Finland (now called Konecranes PLC) for manufacturing Port and Shipyard Cranes in India under License. We also tied up with FAMAC, Poland for manufacturing Wagon Tipplers & Paddle feeders. MBE has achieved a series of significant milestones by manufacturing and installing some of the best performing state-of-the-art Surface Mining Equipment, Stockyard Equipment, Port and Shipyard Cranes for Indian Open Cast Mines, Major and Minor Ports and Shipyards and Power Plants.

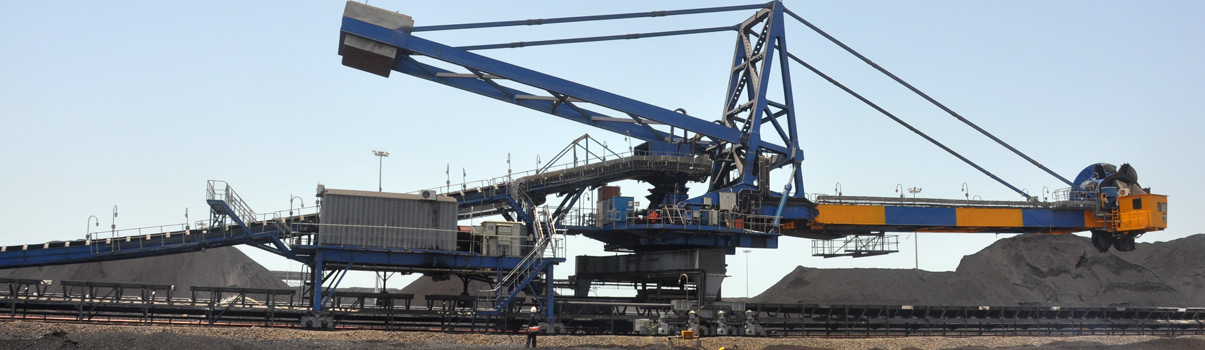

6000 TPH Stacker-reclaimer Adani Port

Port Yard Cranes and Stockyard Machinery

Range of Product

Bulk Handling Cranes

  • Gantry type Grab Unloaders (ranging from 500 TPH to 2500 TPH Free Digging Capacity)
  • Electrical Level Luffing Cranes (ranging from 10 tonnes to 60 tonnes, suitable for Hook and Grab Duty)

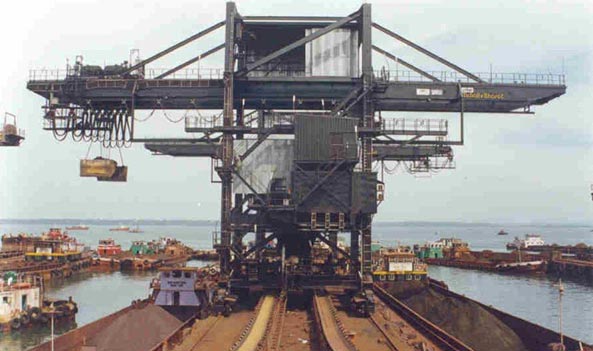

Barge Unloader Murmugoa Port

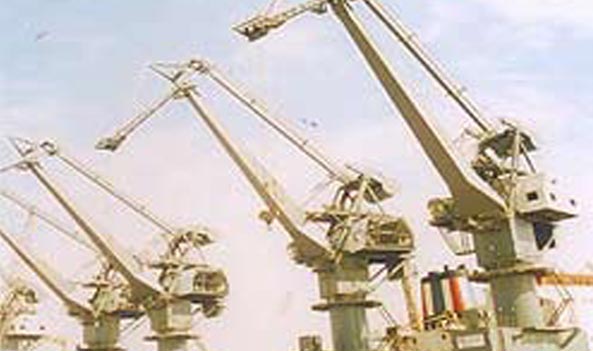

2 Nos. 16 Tonne and 3 Nos. 25 Tonne Electrical Level Luffing Cranes at Kandla Port Trust, Gujarat

Ship Yard Cranes

  • Goliath Gantry cranes (ranging from 50 tonnes to 2000 tonnes)
  • Level Luffing slewing cranes (Ranging from 10 tonnes to 250 tonnes)

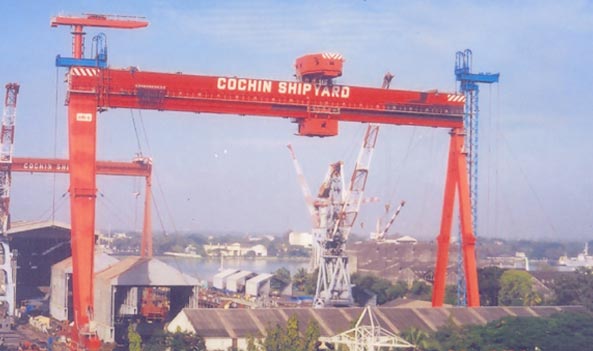

Goliath Crane, Cochin shipyard

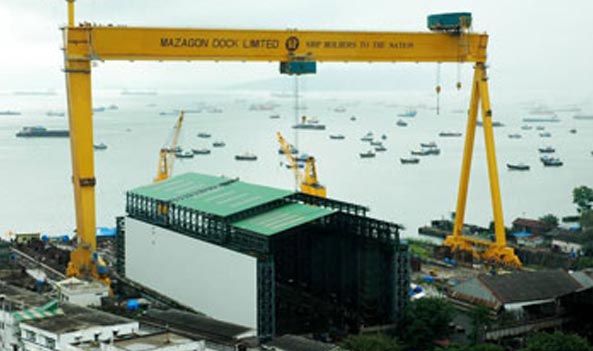

300 Tonnes Goliath Crane, Mazagon Docks

Container Handling Cranes

MBE has supplied on an EPC basis 2 numbers 40T capacity container handling Rail Mounted Quay Cranes (Ship to Shore Cranes) to Haldia Dock Complex of Kolkata Port Trust in 2005. This makes MBE the only company in last 40 years to have supplied indigenously manufactured such crane which otherwise is an imported item monopolised by Chinese manufacturers.

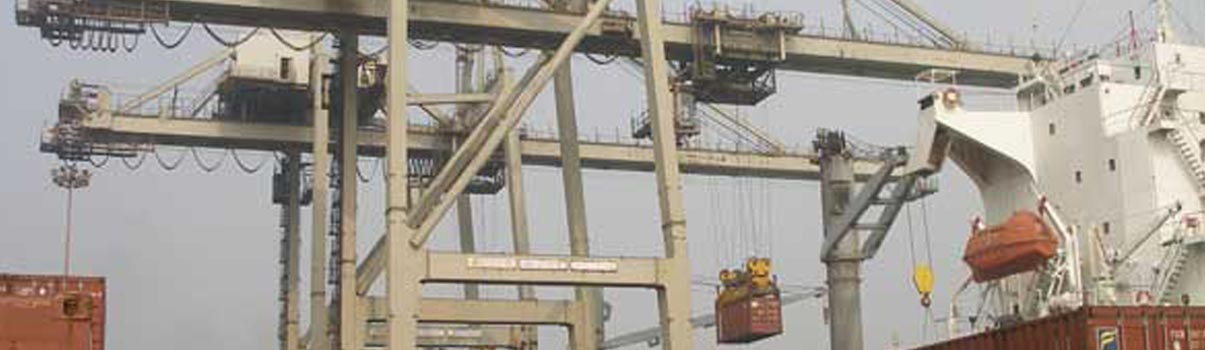

Rail mounted quay crane, Haldia Port

Stockyard Machinery

  • Stacker, Reclaimer and Stacker cum Reclaimer (Ranging from 500 to 6500 tph Stacking and 300 to 5000 tph Reclaiming) MBE has since supplied more than 50 stacker reclaimers in India including 6000 tph stacker reclaimers to Adani Port, 4000 tph stacker reclaimers to Karaikal Port with 48m boom length and several others to clients like Paradip Port Trust, NTPC, BHEL, ACC, WBPDCL, APSEZL, Essar Group etc.
  • Wagon Tippler (Rotary type and Rotaside type as per latest RDSO G 33 Rev -1) In technical collaboration with M/s Famak of Poland , MBE developed its first rotaside wagon tippler along with side arm charger in 2008 and since then have supplied more than 15 wagon tippler sets to reputed clients like SAIL, NTPC, Sterlite Group, ACC, WBPDCL, BHEL etc. as per RDSO G-33 norms as well as the latest G-33 Revision 1 norms
  • Paddle Feeder of Various capacities as per system requirement. Successfully installed in SAIL IISCO.

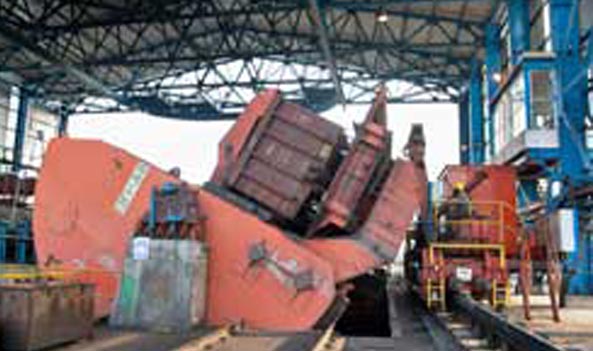

Wagon Tippler, Vedanta, Jharsuguda

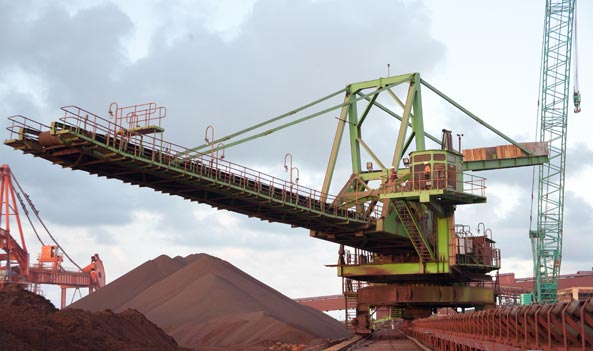

Stacker, Paradip Port

Open Cast Mining Machinery

MBE ventured into Open Cast Mining Machinery and has supplied heavy duty machines of capacities that were hitherto not built by any Indian company. Prestigious orders from Neyveli Lignite Corporation saw MBE manufacturing the following:

  • 3 nos. Bucket Wheel Excavator of 700 ltr. capacity working satisfactorily with an output of 3400 m3/hr
  • 2 nos. Spreader of 4420 m3/hr capacity
  • Shiftable Conveyor of 20,000 TPH capacity with 2400 mm wide belt having drive of 6 x 1250KW, the highest capacity conveyor ever built in the country

Crawler Mounted Bucket Wheel Excavators

MBE is the first Indian Company to manufacture and commission 700 ltr. Bucket Wheel Excavator for Neyveli Lignite Corporation Ltd. with design of M/s Poltegor Engg. Co. Ltd., Poland.

Two numbers 700 Ltr. Bucket Wheel Excavators were supplied by MBE to Neyveli Lignite Corporation Limited, which has achieved an all-time high record of equipment availability and productivity (during the year 2005), since the Company's inception.

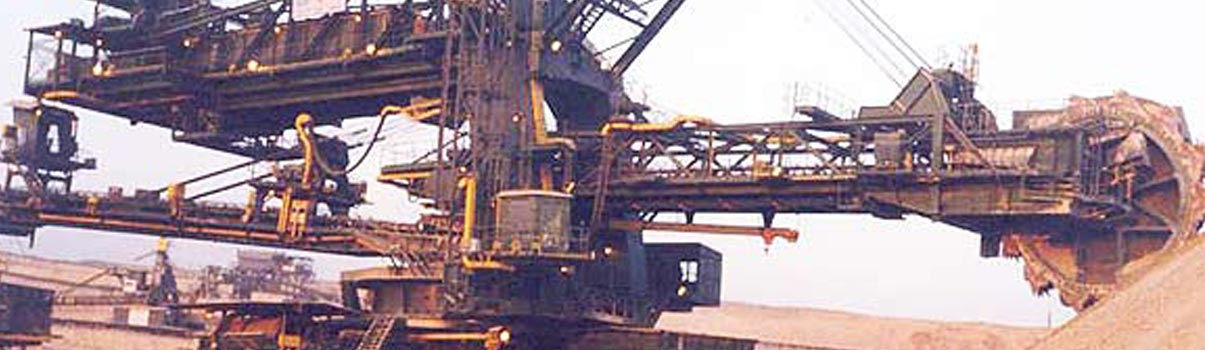

700 Litre x 35 Mtrs. Boom Bucket Wheel Excavators, at Neyveli Lignite Corporation, Neyveli.

Crawler Mounted Spreaders

McNally Bharat Engineering Co. Ltd. is the First Indian Company to manufacture and commission 4420m3 /hr Spreader of 950 Ton weight for Neyveli Lignite Corporation Ltd. with design from M/s Poltegor Engg. Co. Ltd, Poland.

Theoretical output of Spreader 4420 m3/h
Capacity of handling over burden 9300 TPH
Receiving boom length 42 m
Discharge boom length 61 m
Service weight of the machine 987 T

McNally Bharat along with M/s Poltegor can supply 8840 tph, 11000 tph and 20000 tph capacity Spreader, which are capable of working with overburden, hard abrasive Sand Stone, Clay and Hard Lignite.

Spreader Machines supplied by MBE to different Mining clients have always achieved a high record of Equipment availability and productivity.

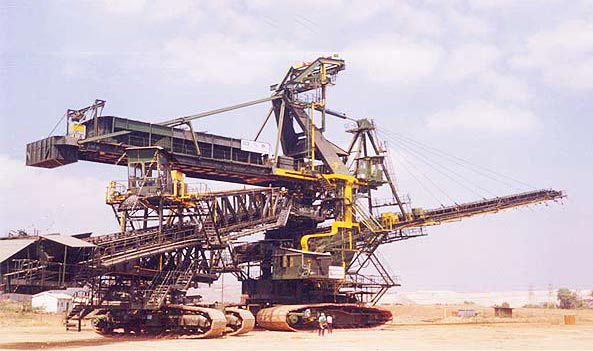

4420 m3/hr. x 61 Mtr. Discharge Boom Spreaders, at Neyveli Lignite Corporation, Neyveli

Shiftable Belt Conveyor

McNally Bharat Engineering Co. Ltd. has designed, manufactured and supplied -

  • 6000 TPH X 7 Kms Long X 1600 mm Belt Width Shiftable Conveyors to Neyveli Lignite Corporation, Neyveli
  • Shiftable conveyor system of 20,000 TPH (Highest Capacity in the Country), Conveyor belt of 2400 mm width (widest in the Country) to Neyveli Lignite Corporation
  • Shiftable conveyor system of 11,000 TPH , 1600 mm width Conveyor belt to Neyveli Lignite Corporation, India

McNally Bharat Engg. Co. Ltd. has the capability to design, manufacture and supply 1600 mm, 1800 mm, 2000 mm and 2400 mm wide Shiftable conveyor systems capable of handling overburden, hard abrasive Sand Stone, Clay and Hard Lignite.

Shiftable Conveyor systems, supplied by MBE to different Mining clients have always achieved high appreciation for equipment availability and productivity.

Some of the projects completed by MBE
